DEC2770
OPNsense
1.498,00 €
Produktnummer:
OP-HW-0001
Produktinformationen "DEC2770"
| Software | ||
| Preinstalled software | OPNsense® | |
| License | Open Source + 1 year free Business Edition | |
| Hardware Specifications | ||
| Typical Applications | Firewall / Routing, VPN, IDPS | |
| SFP+ Ports [10Gbps] | 2 | |
| 2.5GbE RJ45 Ports [ 100/1000/2500Mbps ] | 7 | |
| USB 3.0 Ports | 1 | |
| Console Port | 1 | |
| Internal Storage | 256GB Solid State Flash | |
| Memory | 8GB DDR4 | |
| CPU Cores | 4 / 8 Threads (max frequency 2.2Ghz) | |
| Virtual Interfaces (802.1q VLANS)1 | 4093 | |
| System Performance | ||
| Firewall Throughput | 10Gbps | |
| Firewall Packets Per Second | 830Kpps | |
| Maximum Firewall Port to Port Throughput | 8.5Gbps | |
| Firewall Port to Port Packets Per Second | 719Kpps | |
| Concurrent Sessions | 7000000 | |
| New Connections Per Second | 50000 | |
| Firewall Latency (average) | 150us | |
| Firewall Policies (Recommended Maximum)1 | 10000 | |
| IPsec VPN Throughput (AES256GCM16) | 1.2Gbps | |
| IPsec VPN Packet Per Second (AES256GCM16) | 178Kpps | |
| Threat Protection Throughput Packet Per Second | ~85Kpps | |
| Threat Protection Throughput | ~1Gbps | |
| High Availability with State Synchronisation | Requires Two | |
| Dimensions | ||

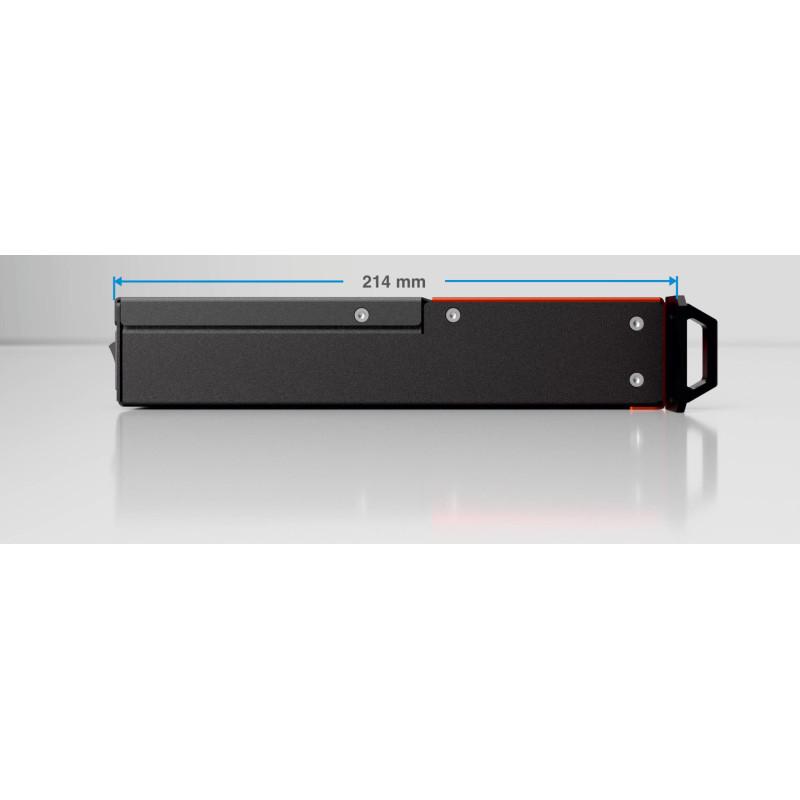

| Height x Width x Depth (mm) | 43.65 (1U) x 482.6 (19") x 242 (214 excl. mount/handle) | |
| Height x Width x Length (inches) | 1.73 x 19 x 9.53 (8.43 excl. mount/handle) | |
| Form Factor | 19" Rackmountable | |
| Weight (appliance only) | 2.75 Kg | |
| Environment | ||
| Power Requirements | 100-240VAC, 50-60Hz | |
| Maximum Current | 0.8A | |
| Power Consumption (Typical) | 20W | |
| Heat Dissipation | 68.3 BTU/hr | |
| Operating Temperature | 0 to +45°C | |
| Storage Temperature | -20 to +70°C | |
| Humidity | 10-90% non-condensing | |
| Regulatory Compliance | ||
| FCC part 15 Class A, CE, Rohs | ||
